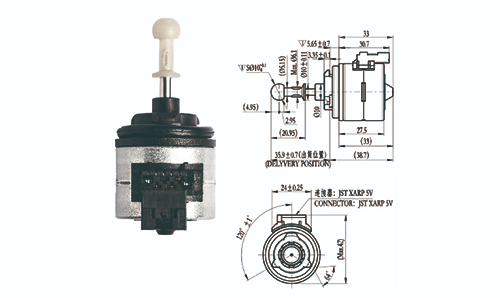

9.51.01.011.001.01

Excitation Method：Bipolar Constant Current Driving

Nominal Current/Phase(IN)：360mA

Phase Quantity：1-2 Phase

Stepping Angle：15º

Linear Travel per Full Step：0.0363±0.026mm

Resistance per Coil：7.9±0.6Ω

Phase Inductivity：8±15%mH(1000Hz)

Stoke：11(+0.2,-0.4)mm

Delivery Position：34±0.3mm

Axial Play of The Shaft：≤0.2mm

Push-pull Force（Homoiothermy:≥30N）Tmin/Tmax:≥25N

Maximum Static Axial Force：300N

MaxSound Level：0.25m,≤60dB,15N

Nominal Frequency：200pps（Whole step）,800pps（1/4step）

Gas-tightness: Input 70kPa gas,keep the pressure for 20s,the pressure:≥68.6kPa

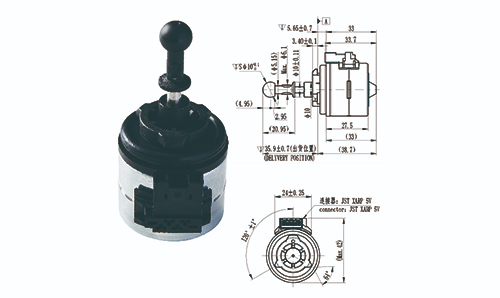

9.01.03.001.001.01

Excitation Method：Bipolar Constant Current Driving

Nominal Current/Phase(IN)：350mA（Whole step）,360mA（1/4FS）

Phase Quantity：2 Phase

Stepping Angle：18º

Resistance per Coil：12.3±7%Ω

Phase Inductivity：10.7±15%mH

Axial Movement：0.25-0.4mm

Torque：≥6.5mN.m

Drawing Force Resistance of fixing plate：300N Max

Sound Level：0.25m,≤50dB,Rated torque，Rated load

Nominal Frequency：200Hz(Whole step）

Operating Frequency Range：100Hz~500Hz

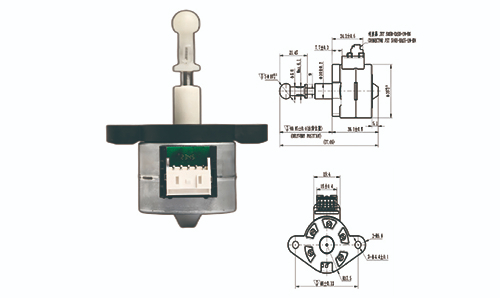

9.51.01.001.001.01

Excitation Method：Bipolar Constant Current Driving

Nominal Current/Phase(IN)：500mA

Phase Quantity：2 Phase

Stepping Angle：15º

Linear Travel per Full Step：1/30mm

Resistance per Coil：7.9±0.6Ω

Phase Inductivity：8±15%mH(1000Hz)

Stoke：12.5±0.15mm

Delivery Position：30±0.3mm

Axial Play of The Shaft：≤0.2mm

Push-pull Force：（Homoiothermy:≥40N）Tmin/Tmax:≥30N

Maximum Axial Installation Force：500N max

Sound Level：0.25m,≤50dB,15N

Nominal Frequency：300pps（Whole step）,600pps（1/2step）

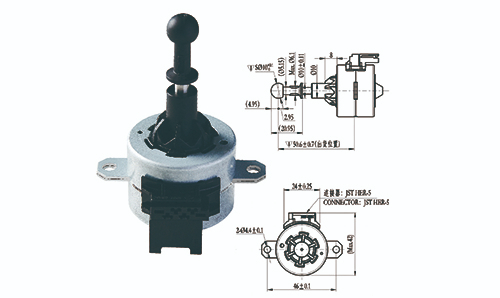

9.01.01.001.001.01

Excitation Method：Bipolar Constant Current Driving

Nominal Current/Phase(IN)：500mA

Phase Quantity：2 Phase

Stepping Angle：15º

Resistance per Coil：7.9±0.6Ω

Phase Inductivity：8±15%mH(1000Hz)

Axial Play of The Shaft：≤0.1mm,15N

Torque：25mN.m

Maximum Static Axial Force：500N Max

Sound Level：0.25m,≤60dB

Nominal Frequency：300pps（Whole step）,600pps（1/2step）

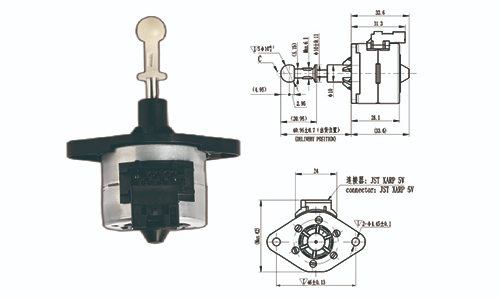

9.51.01.009.001.01

Excitation Method：Bipolar Constant Current Driving

Nominal Current/Phase(IN)：500mA

Phase Quantity：2 Phase

Stepping Angle：15º

Linear Travel per Full Step：1/30mm

Stoke：7.4±0.2mm

Delivery Position：35.5±0.3mm

Axial Play of The Shaft：≤0.2mm

Push-pull Force：（Homoiothermy:≥60N）Tmin/Tmax:≥30N

Maximum Axial Installation Force：500N max

Sound Level：0.25m,≤50dB,15N

Nominal Frequency：300pps（Whole step），600pps（1/2step）
